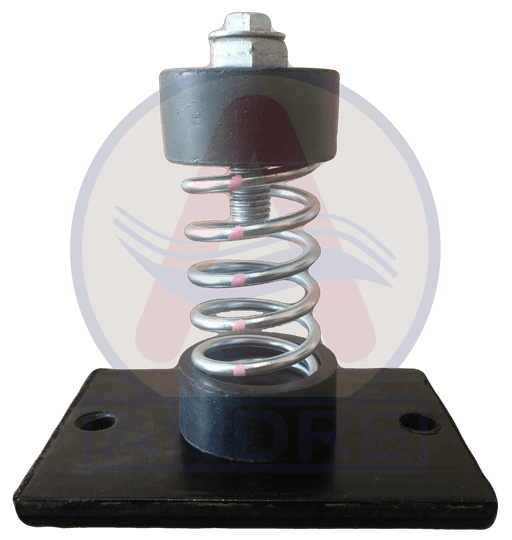

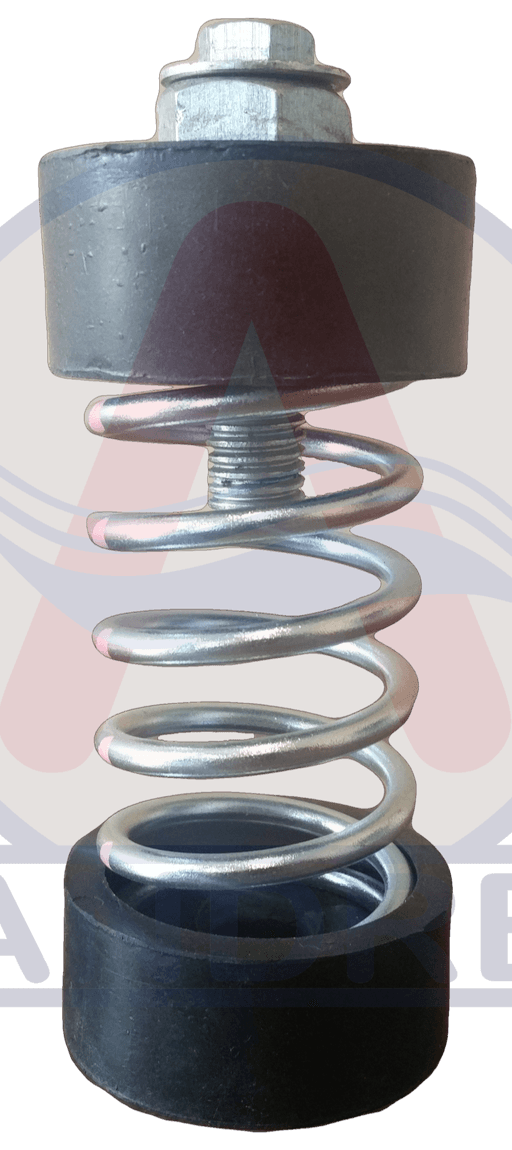

RCA or RCB series spring mounts are unhoused laterally stable steel springs contained in molded neoprene acoustical cups (weld free construction) with leveling bolt assembly. These spring mounts can also be supplied with a base plate if required to be bolted to floor. Base plate is having Anti-Skid Elastomeric Acoustical Pad. Springs have 50% additional travel to max load as per ASHRAE recommendations. These spring mounts are recommended where both horizontal and vertical stability are required.
Pumps
Centrifugal fans
Air handling units
Air Compressors
Spring: Hot Dip Galvanized
Color coded for easy field verification
Base plate has non-skid Acoustical Neoprene Pad
Isolator Selection Range: (-)30% to (+)15% of Rated Load
ANDRE_Spring Mounts RCA-2xx-Submittal.pdf
ANDRE_Spring Mounts RCB-2xx-Submittal.pdf
ANDRE_SpringMounts_RCA_RCB_2xx.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| RCA-200 / RCB-200 | 67 | 100 | 2.25 | Silver | Blue |
| RCA-201 / RCB-201 | 134 | 200 | 2.25 | Silver | Black |
| RCA-202 / RCB-202 | 251 | 375 | 2.0 | Silver | Red |
| RCA-203 / RCB-203 | 335 | 500 | 2.0 | Silver | Green |
| RCA-204 / RCB-204 | 478 | 714 | 2.0 | Silver | Gray |
| RCA-205 / RCB-205 | 958 | 1430 | 2.0 | Silver | White |
| RCA-207 / RCB-207 | 1268 | 1892 | 2.0 | Silver | Yellow |
