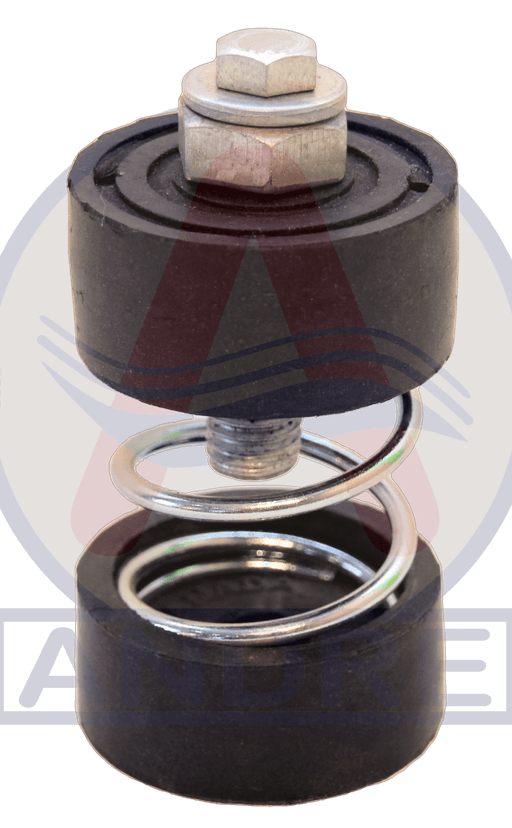

RCA or RCB series (1” Deflection) spring mounts are unhoused laterally stable steel springs contained in molded neoprene acoustical cups (weld free construction) with leveling bolt assembly. These spring mounts can be supplied with a base plate if required to be bolted to floor. Springs have 50% additional travel to max load as per ASHRAE recommendations. These spring mounts are recommended where horizontal and vertical stability is required.
Pumps
Centrifugal fans
Air handling units
Air Compressors
Springs are color coded for easy field verification
Base plate has non-skid Acoustical Neoprene Pad
Isolator Selection Range: (-)30% to (+)15% of Rated Load
ANDRE_Spring Mounts RCB-1xx-Submittal.pdf
ANDRE_Spring Mounts RCA-1xx-Submittal.pdf
ANDRE_SpringMounts_RCA_RCB_1xx.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| RCA-100 / RCB-100 | 21 | 32 | 1.0 | Silver | Pink |
| RCA-101 / RCB-101 | 40 | 60 | 1.3 | Silver | Blue |
| RCA-102 / RCB-102 | 67 | 100 | 1.3 | Silver | Orange |
| RCA-103 / RCB-103 | 111 | 165 | 1.2 | Silver | Brown |
| RCA-103 / RCB-103 | 174 | 260 | 1.0 | Silver | Black |
| RCA-105 / RCB-105 | 248 | 370 | 1.0 | Silver | Yellow |
| RCA-106 / RCB-106 | 302 | 450 | 1.0 | Silver | Red |
| RCA-107 / RCB-107 | 469 | 700 | 1.0 | Silver | Green |
