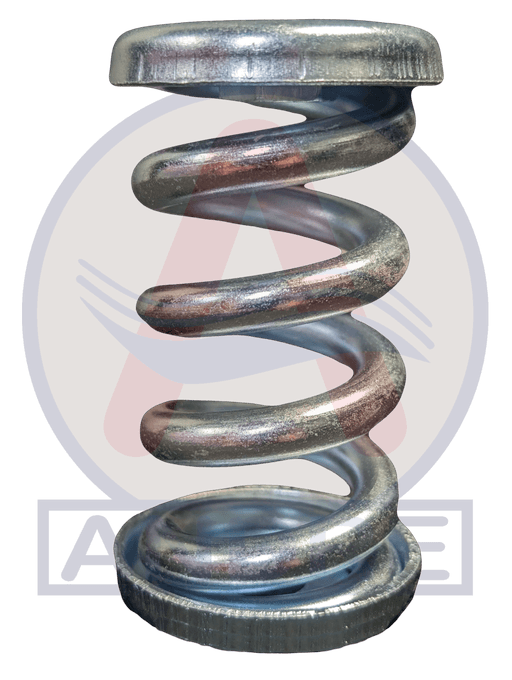

Type CSC-1xx series Spring Mounts with one inch deflection used for reducing vibration. These mounts are preferred over most rubber mounts due to the greater static deflection of the spring. CSC-1xx series spring mounts are designed for vibration and noise control applications. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Used in fan coil units
Compressors
Small fans
Pumps
Curbs
Rails
Two (2) metal cups
BSW internal threaded welded nut
Cups are trivalent coated
Galvanized Springs
Isolator Selection Range: (-)30% to (+)15% of Rated Load
ANDRE_SpringMounts_CSC-1xx.pdf
ANDRE_Spring Mounts CSC-1xx-Submittal.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| CSC-100 | 21 | 32 | 1.0 | SILVER | PINK |
| CSC-101 | 40 | 60 | 1.3 | SILVER | BLUE |
| CSC-102 | 67 | 100 | 1.3 | SILVER | ORANGE |
| CSC-103 | 111 | 165 | 1.2 | SILVER | BROWN |
| CSC-104 | 174 | 260 | 1.0 | SILVER | BLACK |
| CSC-105 | 248 | 370 | 1.0 | SILVER | YELLOW |
| CSC-106 | 302 | 450 | 1.0 | SILVER | RED |
| CSC-107 | 469 | 700 | 1.0 | SILVER | GREEN |
