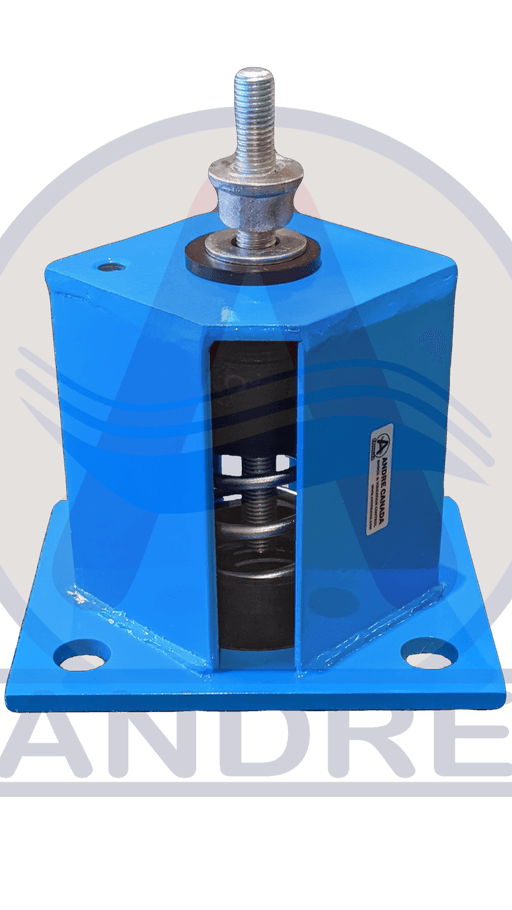

Seismic spring mounts type SS-B-1xx series are heavy duty steel spring isolators with built in all directional snubbing. The snubbing element is a high-quality molded neoprene. The housing is made of steel construction with powder coated finish. The spring is made of galvanized steel. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Compressors
Air Handling Units
Fans
Pumps
Chillers
• Built-in leveling device • Welded construction • Anti-skid elastomeric acoustical cup • Springs are color-coded for easy field identification • Mounting holes furnished as standard • High deflection, low natural frequency • Large diameter laterally stable springs
ANDRE_SeismicSpringMounts_SS_B_1xx.pdf
ANDRE_Seismic Spring Mounts SS-B-1xx-Submittal.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SS-B-130 | 84 | 125 | 1.3 | SILVER | BROWN |
| SS-B-131 | 151 | 125 | 1.3 | SILVER | ORANGE |
| SS-B-132 | 218 | 325 | 1.2 | SILVER | GREEN |
| SS-B-130 | 302 | 450 | 1.2 | SILVER | RED |
| SS-B-134 | 402 | 600 | 1.2 | SILVER | BLACK |
| SS-B-130-140 | 482 | 720 | 1.0 | SILVER | BROWN/RED |
| SS-B-135 | 503 | 750 | 1.1 | SILVER | WHITE |
| SS-B-131-140 | 536 | 800 | 1.0 | SILVER | ORANGE/RED |
| SS-B-132-140 | 84 | 125 | 1.3 | SILVER | GREEN/RED |
| SS-B-136 | 603 | 900 | 1.0 | SILVER | GREY |
| SS-B-133-140 | 670 | 1000 | 1.0 | SILVER | RED/RED |
| SS-B-137 | 737 | 1100 | 1.0 | SILVER | BLUE |
| SS-B-130 | 84 | 125 | 1.3 | SILVER | BROWN |
| SS-B-134-140 | 754 | 1125 | 1.0 | SILVER | BLACK/RED |
| SS-B-135-140 | 871 | 1300 | 1.0 | SILVER | WHITE/RED |
| SS-B-136-140 | 1022 | 1525 | 1.0 | SILVER | GREY/RED |
| SS-B-137-140 | 1112 | 1660 | 0.9 | SILVER | BLACK/RED |
| SS-B-138 | 1206 | 1800 | 1.0 | SILVER | GOLD |
| SS-B-138-140 | 1625 | 2425 | 1.0 | SILVER | GOLD/RED |
| SS-B-139 | 1675 | 2500 | 1.0 | SILVER | NIL |
| SS-B-139-140 | 2094 | 3125 | 1.0 | SILVER | NIL/RED |
