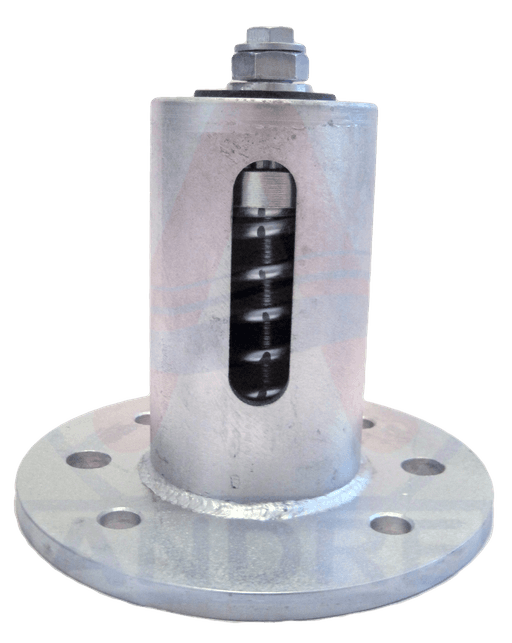

SS-1-1xx Seismic spring mounts have a heavy-duty steel spring isolator unit with built in all directional snubbing. This model is designed to withstand seismic forces even at maximum rated loads, making it suitable and safe for most critical applications (including zone 4 areas). Springs have 50% additional travel to max load as per ASHRAE recommendations
Air Conditioning equipment such as Compressors
Compressors
Air Handling Units
Fans
Pumps
Chillers
Built-in Leveling device
Mounting holes furnished as standa
Certified to withstand 1G force
Color-coded springs for field verification
Housing: Rugged zinc metalized finish
Springs: Hot Dip Galvanized
Snubbing Element: High Quality Neoprene
Isolator Selection Range: (-)30% to (+15%) of Rated Load
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SS-1-130 | 84 | 125 | 1.3 | SILVER | BROWN |
| SS-1-131 | 151 | 225 | 1.3 | SILVER | ORANGE |
| SS-1-132 | 218 | 325 | 1.2 | SILVER | GREEN |
| SS-1-133 | 302 | 450 | 1.2 | SILVER | RED |
| SS-1-134 | 402 | 600 | 1.2 | SILVER | BLACK |
| SS-1-130-140 | 484 | 722 | 1.0 | SILVER | BROWN |
| SS-1-135 | 503 | 750 | 1.1 | SILVER | WHITE |
| SS-1-131-140 | 535 | 799 | 1.0 | SILVER | ORANGE |
| SS-1-132-140 | 600 | 896 | 1.0 | SILVER | GREEN |
| SS-1-136 | 603 | 900 | 1.0 | SILVER | GRAY |
| SS-1-133-140 | 670 | 1000 | 1.0 | SILVER | RED |
| SS-1-137 | 737 | 1100 | 0.9 | SILVER | BLUE |
| SS-1-134-140 | 754 | 1125 | 1.0 | SILVER | BLACK |
| SS-1-135-140 | 876 | 1307 | 1.0 | SILVER | WHITE |
| SS-1-136-140 | 1022 | 1525 | 1.0 | SILVER | GRAY |
| SS-1-137-140 | 1114 | 1663 | 0.9 | SILVER | BLUE |
| SS-1-138 | 1206 | 1800 | 1.0 | SILVER | GOLD |
| SS-1-138-140 | 1625 | 2425 | 1.0 | SILVER | GOLD |
| SS-1-139 | 1675 | 2500 | 1.0 | SILVER | NIL |
| SS-1-139-140 | 2094 | 3125 | 1.0 | SILVER | NIL |
