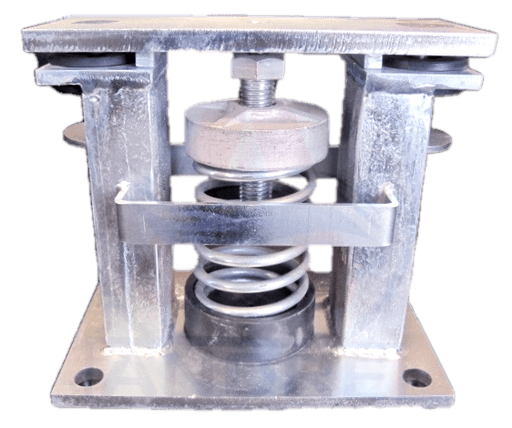

Restrained seismic spring mounts type SSRH-1-1xx series are heavy duty steel spring isolators with built in all directional snubbing. The snubbing element is a high-quality molded neoprene. The housing is made of steel construction with galvanized finish. The spring is made from steel wire with galvanized finish. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Compressors
Air Handling Units
Fans
Pumps
Chillers
Cooling Towers
Built-in leveling device
Welded construction
Anti-skid elastomeric acoustical cup
Springs are color-coded for easy field verification
Mounting holes furnished as standard
High deflection, low natural frequency
Large diameter laterally stable springs
ANDRE_RestrainedSpringMounts_SSRH_1_1xx.pdf
ANDRE_Seismic Spring Mounts SSRH-1-1xx-Submittal.pdf
ANDRE_Seismic Spring Mounts SSRH-1-1xx-Submittal.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SSRH-1-130 | 84 | 125 | 1.3 | SILVER | BROWN |
| SSRH-1-131 | 151 | 225 | 1.3 | SILVER | ORANGE |
| SSRH-1-132 | 218 | 325 | 1.2 | SILVER | GREEN |
| SSRH-1-133 | 302 | 450 | 1.2 | SILVER | RED |
| SSRH-1-134 | 402 | 600 | 1.2 | SILVER | BLACK |
| SSRH-1-130-140 | 484 | 722 | 1.0 | SILVER | BROWN |
| SSRH-1-135 | 503 | 750 | 1.1 | SILVER | WHITE |
| SSRH-1-131-140 | 535 | 799 | 1.0 | SILVER | ORANGE |
| SSRH-1-136 | 603 | 900 | 1.0 | SILVER | GRAY |
| SSRH-1-133-140 | 670 | 1000 | 1.0 | SILVER | RED |
| SSRH-1-137 | 737 | 1100 | 1.0 | SILVER | BLUE |
| SSRH-1-134-140 | 754 | 1125 | 1.0 | SILVER | BLACK |
| SSRH-1-135-140 | 876 | 1307 | 1.0 | SILVER | WHITE |
| SSRH-1-136-140 | 1022 | 1525 | 1.0 | SILVER | GRAY |
| SSRH-1-137-140 | 1114 | 1663 | 1.0 | SILVER | BLUE |
| SSRH-1-138 | 1206 | 1800 | 1.0 | SILVER | GOLD |
| SSRH-1-138-140 | 1625 | 2425 | 1.0 | SILVER | GOLD |
| SSRH-1-139 | 1675 | 2500 | 1.0 | SILVER | NIL |
| SSRH-1-139-140 | 2094 | 3125 | 1.0 | SILVER | NIL |
