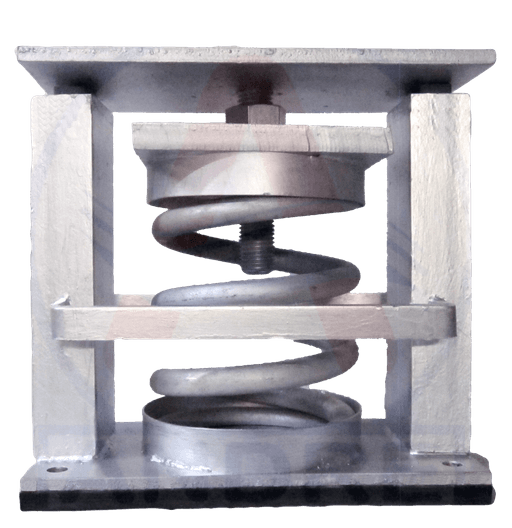

Seismic spring mounts type SSR-C-4xx series are heavy duty steel spring isolators with built in all directional snubbing. The snubbing element is a high-quality molded neoprene. The housing is made of steel construction with galvanized finish. The spring is made of powder coated steel. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Compressors
Air Handling Units
Fans
Pumps
Chillers
Cooling Towers
Built-in leveling device
Welded construction
Anti-skid elastomeric acoustical pad
Springs are color-coded for easy field verification
Mounting holes furnished as standard
High deflection, low natural frequency
Large diameter laterally stable springs
Isolator Selection Range: (-)30% to (+)15% of Rated Load
ANDRE_Seismic Spring Mounts SSR-C-4xx-Submittal.pdf
ANDRE_SeismicSpringMount_SSR_C_4xx.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SSR-C-404 | 3000 | 4500 | 4.5 | SILVER | BLACK |
| SSR-C-405 | 3850 | 5500 | 4.4 | SILVER | BLUE |
| SSR-C-406 | 4900 | 7000 | 4.3 | SILVER | YELLOW |
| SSR-C-404 | 5940 | 9000 | 4.5 | SILVER | RED |
