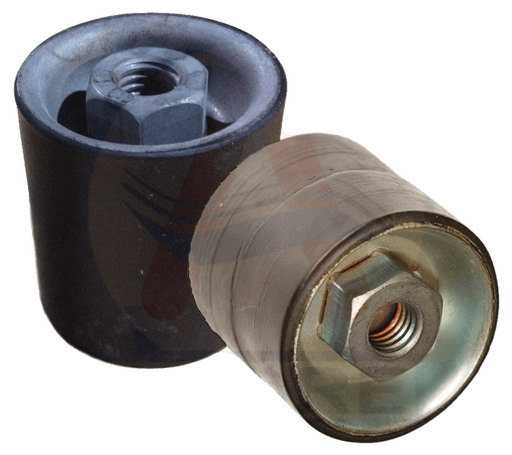

PCM shock mounts are made to provide protection against severe shock environments, high frequency vibrations and structural brone shock/vibration. Their compact design makes it easy to mount in constraint/restricted spaces.
Vehicle Electronics
Motors and Pumps
Fans & Blowers
Transformers
Ship equipment
Aircraft Electronics
Racking Systems
Reduce Shock and Vibration
Easy to install with no maintenance
ANDRE_ShockMounts_PCM.pdf
ANDRE_SHOCK MOUNTS_PCM-Submittal.pdf
MODEL | MAX LOAD SHEAR (KG) | SHEAR STIFFNESS (KG/mm) | MAX LOAD COMPRESSION (KG) | COMPRESSION STIFFNESS (KG/mm) |
|---|---|---|---|---|
| PCM-134-A | 20.5 | 3.75 | 43 | 21.43 |
| PCM-134-B | 25 | 5 | 59 | 29 |
| PCM-134-C | 38.6 | 7.5 | 86 | 42.41 |
| PCM-134-D | 59 | 11.6 | 131.8 | 64.74 |
| PCM-218-A | 13.6 | 2.68 | 40.9 | 13.13 |
| PCM-218-B | 20.5 | 3.93 | 52 | 17.14 |
| PCM-218-C | 27 | 5.18 | 75 | 24.55 |
| PCM-218-D | 45.5 | 8.66 | 120.5 | 39.29 |
| PCM-258-A | 9 | 1.79 | 38.6 | 9.29 |
| PCM-258-B | 12 | 2.41 | 50 | 12.05 |
| PCM-258-C | 16.8 | 3.21 | 77 | 18.75 |
| PCM-258-D | 29.5 | 5.63 | 118 | 29 |
