EJ-400 SERIES

Product_Image

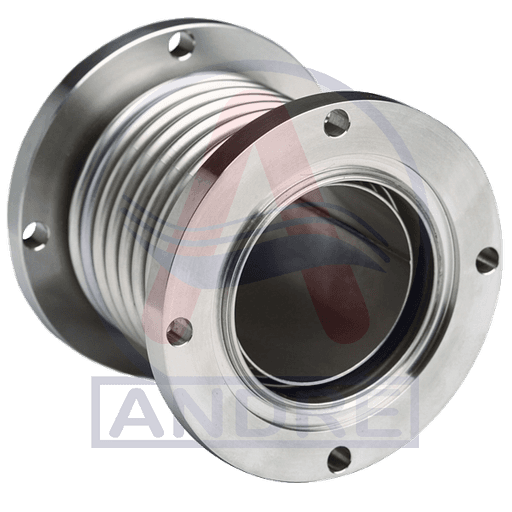

EJ-400 Series Stainless Steel Expansion Joints are designed to provide flexibility, vibration isolation, and stress relief in piping systems. The joints are manufactured with corrosion resistance steel, and a durable rubber gasket ensures a reliable and effective seal. These expansion joints are commonly used in pump connections and piping systems to absorb vibration and accommodate misalignment. By allowing controlled movement, they reduce stress caused by thermal expansion and system operation, helping to extend the service life of connected equipment and piping. Their design allows for axial and lateral movement, making them a dependable solution for improving overall performance and reliability in a wide range of mechanical applications.

Applications

Normally used in pumps and piping
To absorb the vibration and misalignment correction in piping

Features

Corrosion resistant materials
Reduces noise and vibration
Eliminates piping misalignment
Eliminates stress due to thermal expansion

Downloads

EJ-400-ExpansionJoints.pdf

Specification

MODEL

NOMINAL BORE (INCH)

TOTAL LENGTH (INCH)

BELLOW O.D. (INCH)

AXIAL MOVEMENT (INCH)

MAX LATERAL OFFSET (INCH)

EJ-400-20

2

6

2.75

0.60

0.59

EJ-400-25

2 1/2

6

3.40

0.60

0.55

EJ-400-30

3

6

3.99

0.60

0.47

EJ-400-40

4

6

5.03

0.60

0.39

EJ-400-50

5

6

6.16

0.60

0.31

EJ-400-60

6

6

7.22

0.60

0.23

EJ-400-80

8

8

9.21

0.60

0.31

EJ-400-100

10

8

11.37

0.60

0.23

EJ-400-120

12

8

13.42

0.60

0.19

EJ-400-140

14

8

15.43

0.60

0.19
