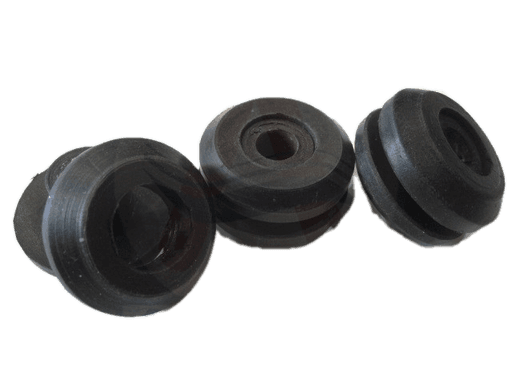

Rubber grommets are cost-effective way to protect many HVAC units. They help eliminate vibration and noise and reduce chances of failure. Rubber grommets also provide a nice look to the overall application. They provide an abrasion-resistant padding around the rods or bolts. They are available in numerous sizes to fit any application.
Any manufacturing Equipment
HVAC Units
Machines
Compressors
Available in multiple sizes
Abrasion and tear-resistant
Helps prevent metal to metal contact
ANDRE_Grommets_GR.pdf
MODEL | PART ID | DIMENSIONS (INCHES) "A" | DIMENSIONS (INCHES) "B" | DIMENSIONS (INCHES) "C" | DIMENSIONS (INCHES) "D" | DIMENSIONS (INCHES) "E" |
|---|---|---|---|---|---|---|
| GROMMETS | GR-01 | 1/8 | 1/16 | 1/4 | 11/32 | 3/16 |
| GROMMETS | GR-02 | 3/16 | 1/32 | 5/16 | 7/16 | 3/16 |
| GROMMETS | GR-03 | 3/16 | 1/8 | 5/16 | 7/16 | 1/4 |
| GROMMETS | GR-04 | 1/4 | 1/16 | 3/8 | 1/2 | 7/32 |
| GROMMETS | GR-05 | 1/4 | 1/4 | 7/16 | 5/8 | 3/8 |
| GROMMETS | GR-06 | 9/32 | 1/4 | 15/32 | 11/16 | 7/16 |
| GROMMETS | GR-07 | 5/16 | 1/16 | 7/16 | 5/8 | 9/32 |
| GROMMETS | GR-08 | 5/16 | 3/16 | 3/4 | 1 | 7/16 |
| GROMMETS | GR-09 | 3/8 | 1/16 | 1/2 | 5/8 | 1/4 |
| GROMMETS | GR-10 | 3/8 | 1/4 | 5/8 | 7/8 | 1/2 |
| GROMMETS | GR-11 | 7/16 | 1/4 | 11/16 | 15/16 | 1/2 |
| GROMMETS | GR-12 | 1/2 | 1/16 | 13/16 | 1 1/16 | 5/16 |
| GROMMETS | GR-13 | 9/16 | 1/16 | 13/16 | 1 1/16 | 3/8 |
| GROMMETS | GR-14 | 5/8 | 1/16 | 7/8 | 1 1/8 | 5/16 |
| GROMMETS | GR-15 | 5/8 | 1/4 | 7/8 | 1 1/8 | 1/2 |
| GROMMETS | GR-16 | 3/4 | 1/16 | 1 1/16 | 1 3/8 | 3/8 |
| GROMMETS | GR-17 | 7/8 | 1/16 | 1 1/4 | 1 5/8 | 7/16 |
| GROMMETS | GR-18 | 1 | 1/16 | 1 3/8 | 1 3/4 | 7/16 |
| GROMMETS | GR-19 | 1 1/8 | 3/64 | 1 3/8 | 2 | 3/8 |
| GROMMETS | GR-20 | 1 1/2 | 1/16 | 1 1/2 | 2 1/8 | 7/16 |
| GROMMETS | GR-21 | 1 1/2 | 1/8 | 1 3/4 | 2 1/8 | 1/2 |
| GROMMETS | GR-22 | 1 1/2 | 3/16 | 1 3/4 | 2 1/8 | 9/16 |
| GROMMETS | GR-23 | 2 | 1/16 | 3 1/2 | 4 | 1/2 |
| GROMMETS | GR-24 | 2 1/8 | 1/8 | 2 1/2 | 2 7/8 | 1/2 |
